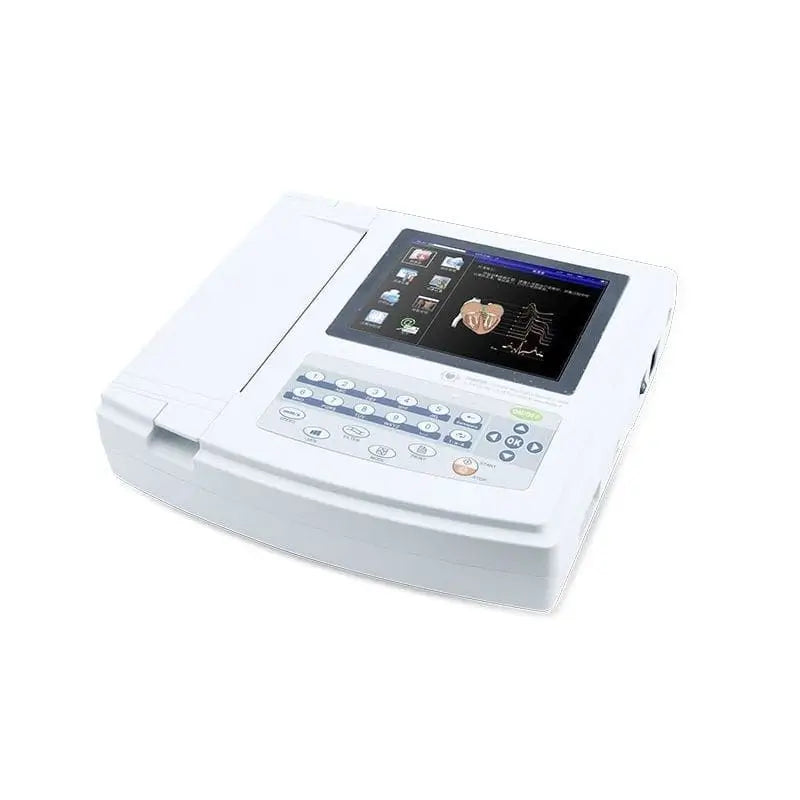

This digital electrocardiograph monitor ECG1200G, shows the graphical representation of the electrical activity of the heart, collecting the 12-lead ECG signal and printing waveform by thermal printing system. It measures, records and displays the ECG waveform in AUTO/Manual mode, measures and diagnoses the ECG waveform parameters automatically, multi-language interface, AC/DC, rhythm advance selection, trend graph and PR interval histogram printing, case database management.
This multi-parametric monitor is fully digital and features a state-of-the-art microprocessor for maximum accuracy. A unique ECG system, specifically designed to help physicians better predict and diagnose patients at risk for heart disease. A portable, easy-to-use electrocardiograph that allows for multi-patient configurations to help the clinician perform a faster, safer cardiac assessment and provide more personalised patient care.
The ECG1200G comes with all accessories, thermal printer and an internal rechargeable battery. Key features of the portable electrocardiograph: Full digital design High resolution thermal printer Input/Output network and RS-232 port support
Compatible with external printer Full digital anti-interference filtering
Automatic baseline adjustment Choice of automatic or manual operation
Intuitive mode of operation Option to copy and reprint last ECG record Lead disconnection detection and message Selectable print format: Standard 3-lead mode Selection of lead rate and rhythm Automatic measurement of ECG parameters Noise level: =15µVp-p
Components: Display Control panel On/Off button Paper compartment Grounding Grounding connector Power cord connector Shunt connector USB port Fuse holder Display: 800 x 600 TFT LCD screens. Display with touch menus and control keys.
Battery: Rechargeable lithium battery.
Medical electrocardiograph technical features: The Sync collection for 12-lead ECG adopts digital signal processing technology and obtains high quality ECG waveform through power frequency filter, baseline filter and EMG filter of ECG signal.
Multiply print modes and formats, including auto 12x1, auto 6x2 + 1, auto 6x2 + 1_H, auto 6x2, auto 6x2_H, auto 3x4 + 1, auto 3x4 + 2, paced 12, paced 10, paced 8, paced 6, manual, etc. The trend graph and PR interval histogram can be printed and the waveform length can be adjusted. Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter status, etc. on one screen, convenient for contrast diagnosis. Paper speed: 5 mm/s, 6'25 mm/s, 10 mm/s, 12'5 mm/s, 25 mm/s, 50 mm/s.
With the self-analysis and self-diagnostic functions for routine ECG parameters, it provides measurement results and self-diagnostic conclusion for HR, HRM, and HRM.With self-diagnostic functions for HR, PR interval, P duration, QRS, T duration, QT duration, QT interval, Q-Tc, P axis, QRS Axis, T Axis, R (V5), S (V1), R (V5) + S (V1), etc. Built-in memory stores up to 1000 cases. In optimal DC state, up to 10 hours standby time, continuous printing for more than 3 hours, record up to 300 ECG waveforms (commonly, it is the case of 3s), which meets the requirements of visiting a patient at home and in body examination. Interface and report in several languages (Turkish, French, Chinese, English, German, Kazakh, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian). The instrument has the function of normal self-analysis and self-interpretation of the ECG waveform parameter, provides measurement parameters such as time, date, time of day, time of day and time of day.measurement parameters such as time, RRPP interval, P length, QRS length, QRS length, T length, Q-Tc interval, Q-Tc, P AXIS, QRS AXIS, T AXIS, R (V5), S (V1), R (V5) +S (V1) measurements: Dimensions: 340 x 320 x 85 mm. Net weight: 3,2Kg.
Accessories: EGC cable. Set of 4 suction cups for extremities. Set of 4 suction cups for chest. Power cable. Earthing cable. User's manual. We like this electrocardiograph monitor for: Its speed of data capture and subsequent storage. Its state-of-the-art, high-definition screen. Functionality: with self-analysis and self-diagnosis functions for routine ECG parameters. Features FUNCTIONALITY: with self-analysis and self-diagnostic functions for routine ECG parameters, provides measurement results and self-diagnostic conclusion FILTERS: this portable electrocardiograph has a power frequency filter, baseline filter and EMG filter of the ECG signal. HIGH RESOLUTION THERMAL PRINTING: the vital signs monitor will be able to print the waveform results quickly and with the highest quality.
RECORDING: the digital electrocardiograph stores more than 1000 cases, allowing you to retrieve them for further analysis or comparison DISPLAY: thanks to its display, you can view the waveform results quickly and conveniently before printing them.
