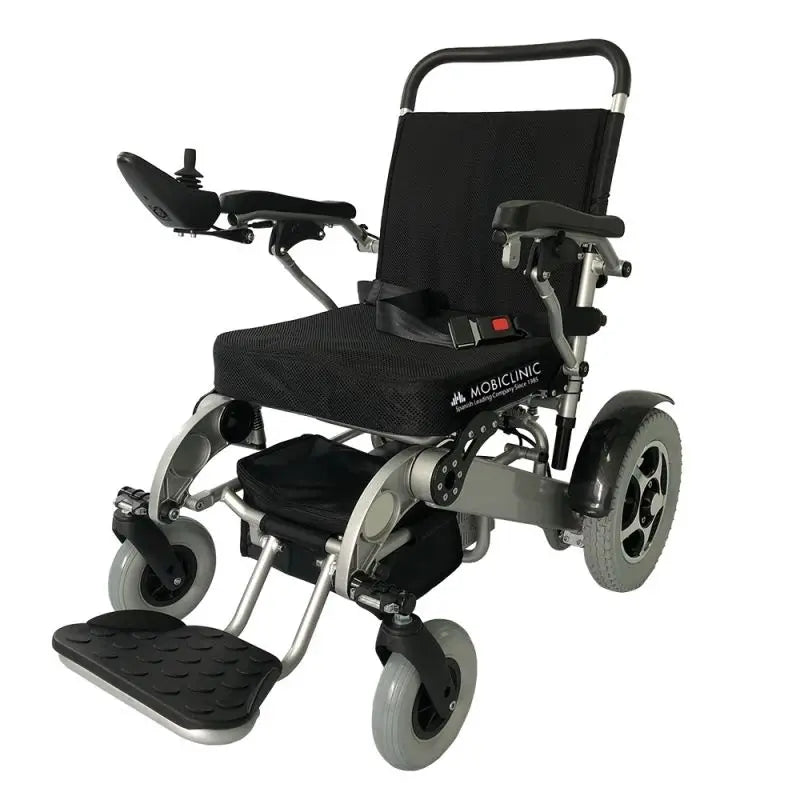

The Mobiclinic Troya Plus Ultra power wheelchair has been designed to ensure comfort and mobility on all types of terrain. Thanks to its light weight of only 29.9 kg and its practical fold forward system, you can transport this wheelchair in any luggage compartment and use it wherever you need it. And when you're not using it, you can store the portable power wheelchair in any corner of your home without any problems.
The latest generation batteries and solid wheels allow you to travel long distances comfortably and carefree with the Troya Plus Ultra folding electric wheelchair. The combination of aluminium and carbon fibre frame of the Troya Plus Ultra electric wheelchair makes it extremely strong and lightweight, perfect for everyday use.
With its modern and practical design, it offers you the autonomy and confidence you need. Features of the Troya Plus Ultra electric wheelchairs for the disabled: Portable and foldable: it has an efficient folding system with battery forward folding with which you can collect the electric wheelchair taking up as little space as possible. It has a bag under the seat for storing personal belongings. Ambidextrous joystick: can be placed on either the left or right armrest. Armrests and footrests: the armrests can be folded backwards to allow easy access to the chair and increase comfort together with the large footrest. The footrests are removable and swivelling.
Wide seat with seat belt. This wheelchair has a height adjustable backrest. The Troya Plus Ultra wheelchair has among its included accessories 2 white front lights and 2 coloured rear lights, all of them LED type and with an on/off switch located on the light itself.
These lights come as part of the wheelchair and have their own separate charge. 3.7 V, 500 mAh lamp input. Optional joystick for accompanying person's position.
Technical characteristics of the wheelchair with motor:
Brushless motor, weight is 3.1 kg / pc.
Maximum speed: 8.5 km/h.
Motor: 250W*2, DC24V.
Braking distance: = 1.0 m.
Max. tilt capacity: 15°. Turning radius: 85 cm.
Max. safe weight capacity: 120 kg.
DC charger output: 24V2A.
AC charger input: 100 240 V, 50/60 Hz.
Reverse gear available.
Wheels: Solid front wheels and pneumatic rear wheels.
Front and rear shock absorption.
Rear wheel: 30.50 cm. Front wheel: 20.50 cm.
Maximum pressure of the pneumatic tyres: 2.5 bar (2 bar recommended).
Battery: 3 Batteries as standard, Lithium 24V10Ah (240 Wh)
Battery weight: 3 x 24V10Ah batteries, 1.7kg each. Features two charging ports: one that goes directly to the battery and one under the joystick. The batteries can be removed for charging. The joystick indicates the remaining battery level: Red light: indicates that you should switch on the wheelchair and connect the battery. Orange light: appears when charging Green light: charging completed Range: 51 km of autonomy (comes with three 24V10h batteries) *The range is indicative, the result will depend on the type of terrain and the weight of the user. Measurements: Total length: 103 cm. Length without footrest: 83.8 cm. Total width: 66 cm. Total height: 91-106 cm. (Height adjustable) Folded size: 66x40.5x79 cm.
Weight: 29.9 kg with battery and 24.8 kg without battery.
Seat width: 43.5 cm.
Seat depth: 43 cm.
Distance from the seat to the ground: 51 cm. Backrest width: 40 cm.
Backrest height: 35.5 cm.
Width between armrests (included): 56 cm.
Width between armrests (not included): 47 cm.
Armrest width: 5 cm.
Padded width: 5 cm.
Armrest length: 36 cm.
Padded length: 31 cm.
Armrest length with control: 58 cm.
Armrest height: 24.4 cm.
Footrest width: 33.5 cm.
Footrest length: 22.5 cm.
Footrest to seat: 43.5 cm.
Footrest to the floor: 7 cm.
Distance between axles: 60 cm.
Joystick: 7.3x6.5 cm.
Joystick height: 6 cm.
Standard measurements,
NOT ADAPTABLE
We like this folding electric wheelchair for: Its high level of comfort for the user thanks to its wide and comfortable seat, its folding armrests and its wide footrest. Its mobility on any terrain and its lightness. The Troya Plus Ultra model of electric wheelchair for the disabled has been conceived and designed to adapt to any terrain that may be encountered on a daily basis. In addition, this chair can climb curbs up to 4 cm. Its folding system is quick and easy. In a matter of seconds you can fold your electric wheelchair for quick transport or storage. WARRANTY: 3 years.
